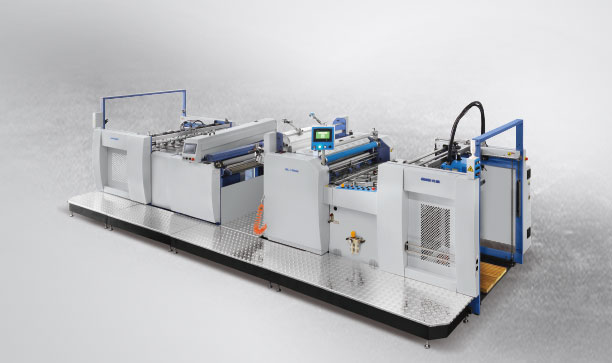

Automatic Chain Cutter Laminator

SL-1050

Automatic Chain Cutter Laminator

Instant Electromagnetic Heater
heat up time shorten to 90 seconds
accurate temperature control:±1℃

SL-1050 Chain Cutter  system apply for all kinds of thermal film lamination,having the feature of accurate separation without film margin,especially for PET film, foil film and etc.,with excellent function to solve complicated issue.


Overview video

light

Configuration

  • Auto FeederThis machine is equipped with a paper pre-stacker, Servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine
  • Side Lay RegulatorThe Servo controller and Side Lay Mechanism guarantees precise paper alignment at all times.
  • Electromagnetic HeaterEquipped with advanced electromagnetic heater. Fast pre-heating. Energy saving. Environmental protection.
  • Chain Cutter SystemChain cutter system applying bopp, pet,pvc film and etc.,having the feature of accurate separation without film margin
  • Automatic StackerAutomatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets

Technical Parameters

SL-1050
Max Paper Size
Min Paper Size
1050x820 mm
300x300 mm
Paper Thickness 105-500 g/m2
Laminating Speed
Laminating Speed
0-75 m/min(PET Film)
0-750 m/min
Gross Power 25kw
Weight
Overall Dimensions
4300 kg
10500x2400x1900 mm
Pre-stacker
1850mm
