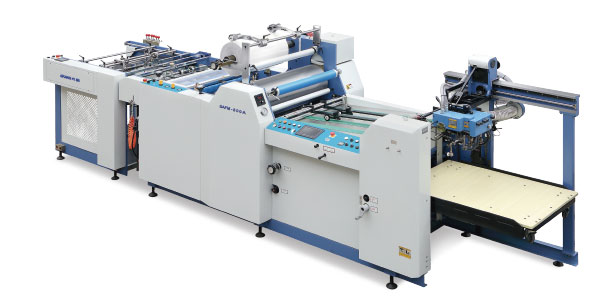

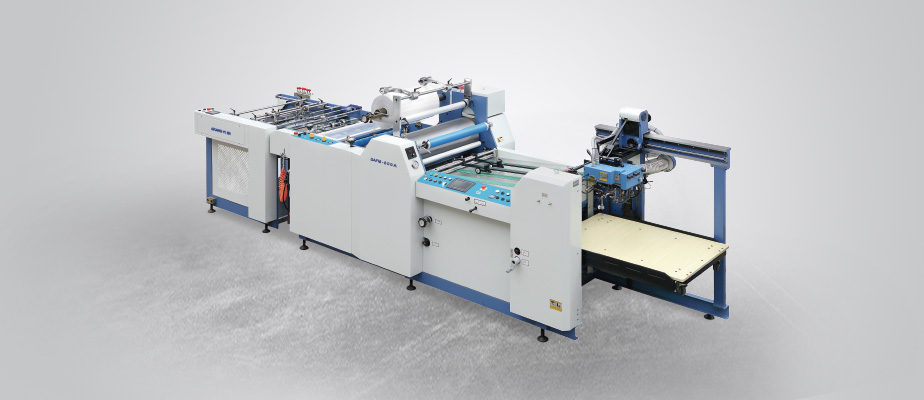

Fully Automatic Laminator

SAFM-800A

Fully Automatic Laminator

Standard With Jogger.
Optional With Automaic Stacker

SAFM serial fully automatic laminator is designed for thermal film lamination. This laminator is composed of feeding unit, laminating unit and paper separation unit and paper collection system.The electric and pneumatic system is equipped with programmable control (PLC). This machine centralizes the features of compact structure, high automatization and humanized operation design.

Overview video

Configuration

  • Separation systemPneumatic separation system to separate the paper stably and quickly.

Technical Parameters

SAFM-800A
Max Paper Size
Min Paper Size
780X1040mm
300X300mm
Paper Thickness 100-500 g/m2
Laminating Speed 0-65 m/min
Gross Power 22kw
Weight
Overall Dimensions
3000kg
5300x1650x1700mm
